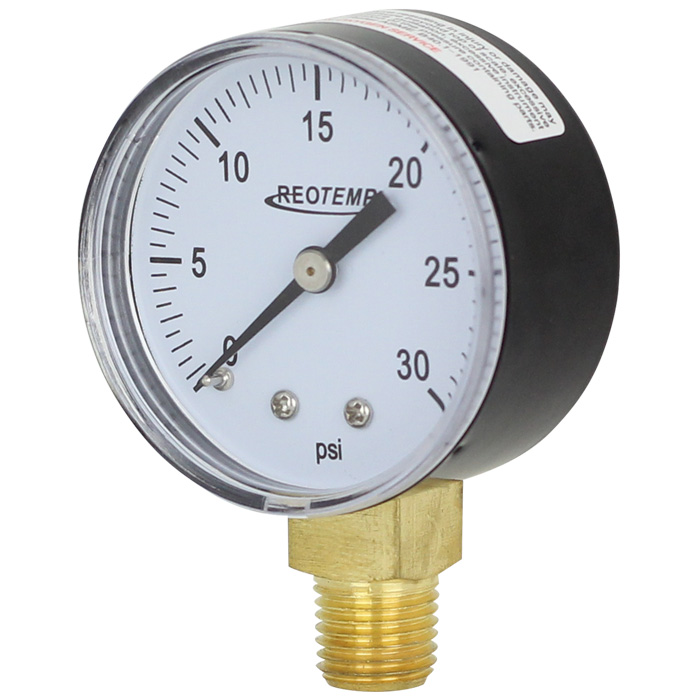

Dry Brass Gauges, Small Dial

Dry Brass Gauges, Small Dial

Specification

Construction Materials

Non Wetted
Case: Black Painted Steel or Stainless Steel
Ring: Snap-In Lens or Push-On Bezel
Dial: White Aluminum, Black Letters

Wetted
Capsule: Copper Alloy
Socket: Copper Alloy

Case-to-Socket
Screw Connection

Lens
Plastic Snap-In or Glass Push-On Bezel

Temperature Limits

Ambient
-40°F to 140°F

Process
-40°F to 140°F

Process When Assembled with a Diaphragm Seal
Cannot be mounted to a diaphragm seal.

Accuracy: 3 – 2 – 3%, ASME Grade B

Fillable: No

Restrictor Screw: No

Max Working Pressure: Stable = 100%, Momentary = 110% of scale

Weight: 1.5” = 0.1 lbs, 2” = 0.2 lbs, 2.5” = 0.25 lbs
