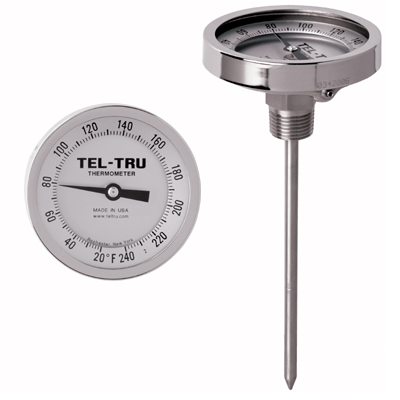

GT300 Back Connect Thermometer, 3 inch dial, 304SS wetted parts

GT300 Back Connect Thermometer, 3 inch dial, 304SS wetted parts
Model: 3310

  • 3″ Dial
  • .250″ Diameter stem standard
  • 304SS External Parts
  • Made in USA
  • NIST Traceable Calibration Certificate available, order separately
  •  Click here for lead times.




     If you require custom configurations that are not available on this page, please contact us.

    Register an Interest

    Stem Length
    Custom stem lengths available upon request (up to 120")
    Temperature Range
    Thermometers with temperature ranges 200/1000ºF and 100/550ºC are NOT recommended for continuous use above 800ºF (425ºC) --- for intermittent use only. Minimum stem length is 4" with the range -50/25°C.
    Material and Dry or Filled
    Ambient temperature should not exceed 200°F (93°C) or 150°F (65°C) for silicone fill. If using silicone fill, please select Polycarbonate lens in section G. Process temperatures for silicone fill units minimum range -50ºF (-45ºC) and maximum range 500ºF (260ºC).
    Connection
    1/4" NPT connection is standard for 2" dials. 1/2" NPT is standard for all others.
    Stem Diameter
    The .250" blunt tip is standard up to 42", and the .375" blunt tip is standard over 42". Custom tips available upon request.
    Lens
    If using Silicone Fill, please select Polycarbonate, Acrylic, or Shatterproof lens.
    Options
