Handheld Ultrasonic Flow Meter
Handheld Ultrasonic Flow Meter
2. Applicable medium temperature: -30℃-160℃
3. Power supply: 3 built-in 1.2V rechargeable NI-MH batteries with a capacity of 2000mAH, 90VAC-260VAC power adapter
1.working principle:
Handheld ultrasonic flow meters use the transit-time measurement principle to determine the flow of liquids. The device consists of a transducer that transmits ultrasonic waves through the liquid under test. The transducer also acts as a receiver, detecting ultrasonic waves passing through the liquid. Ultrasonic waves travel through a liquid at different speeds, depending on the flow rate of the liquid. As the fluid flows to the transducer, it is accelerated and takes less time through the fluid. Conversely, when fluid flows away from the transducer, it slows down and takes more time to pass through.
Ultrasonic flow meters measure the difference in transit time between downstream and upstream propagating waves. This time difference is related to the flow rate of the liquid and is used to calculate the flow rate using the algorithm and pipe size.
Easy to install, portable and easy to use, this handheld device is ideal for measuring liquid flow in the field without interrupting liquid flow or shutting down pipes.
|

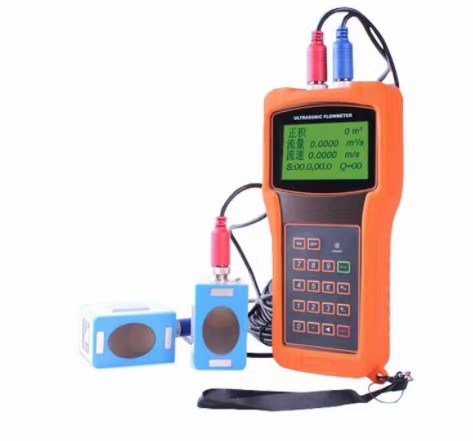

| Handheld Ultrasonic Flow Meter Front view |
2.Applications:
Handheld ultrasonic flow meters are used in a variety of industries including water treatment plants, chemical processing, petroleum, food and beverage production, HVAC systems, and many more. It is especially useful where the fluid being measured is corrosive, toxic or hazardous to handle.
In the water treatment industry, this meter is used to measure the flow of water in pipelines and other treatment processes. In the chemical processing industry, it is used to measure the flow of chemicals to ensure correct dosage and quality control. In the petroleum industry, it is used to measure the flow of petroleum and other pressurized fluids in pipelines and subsea systems.
HVAC engineers use this flow meter to measure the flow of heating and cooling fluids and adjust the system accordingly for optimal performance. In the food and beverage industry, it is used to measure the flow of products such as dairy, beer and beverages to ensure that no product is wasted and that the manufacturing process is running smoothly.
|
|
|
|
|
|
|
|
| |
|
|
|
|
3.Basic Technical Data：
Linearity | 0.5% |
Repeatability | 0.2% |
Accuracy | ±1% of reading at rates>0.2 mps |
Response Time | 0-999 seconds, user-configurable |
Velocity | ±32 m/s |
Pipe Size | 15mm-6000mm |
Totalizer | 7-digit totals for net, positive and negative flow respectively |
Liquid Types | Virtually all liquids |
Security | Setup values Modification Lockout. Access code needs unlocking |
Display | 4×8 Chinese characters or 4×16 English letters |
Communication Interface | RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements |
Transducer Cord Length | Standard 5m x 2, optional 10m x 2 |
Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
Data Logger | Built-in data logger can store over 2000 lines of data |
Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
Housing Material | ABS |
Case Size | 210x90x30mm |
Unit Weight | 500g with batteries |
4.Ultrasonic flow sensor is suitable for pipe diameter range:
Clamp-on Type | Picture | Model | Accuracy | Protection Class | Measuring Pipe Size | Medium Temperature |
Standrad |
| TS-2 | ±1% | IP68 | DN25-DN100mm | -30℃-90℃ |
| TM-1 | ±1% | IP68 | DN50-DN700mm | -30℃-90℃ | |
| TL-1 | ±1% | IP68 | DN300-DN3000mm | -30℃-90℃ | |
High Temperature Standard |
| TS-2-HT | ±1% | IP68 | DN25-DN100mm | -30℃-160℃ |
| TM-1-HT | ±1% | IP68 | DN50-DN700mm | -30℃-160℃ | |
| TL-1-HT | ±1% | IP68 | DN300-DN3000mm | -30℃-160℃ | |
Mounting Bracket |
| HS | ±1% | IP68 | DN25-DN100mm | -30℃-90℃ |
| HM | ±1% | IP68 | DN50-DN300mm | -30℃-90℃ | |
| EB-1 | ±1% | IP68 | DN300-DN700mm | -30℃-90℃ | |
High Temperature Mounting Bracket |
| HS-HT | ±1% | IP68 | DN25-DN100mm | -30℃-160℃ |
| HM-HT | ±1% | IP68 | DN50-DN300mm | -30℃-160℃ | |
| EB-1-HT | ±1% | IP68 | DN300-DN700mm | -30℃-160℃ |
5.Packing List (Standard Configuration)：
Name | QTY (pcs) |
Main Unit | 1 |
Medium transducer | 2 |
Ultrasonic signal cable | 2 |
Data line | 1 |
AC adapter | 1 |
Coupling agent | 1 |
Belt stretcher | 2 |
Tape | 1 |
User manual | 1 |
Carrying case | 1 |
6.method Installation：
※V-method installation is the most widely mode for daily measurement with pipe inner diameters ranging from 15 mm to 400 mm. It is also called reflective mode.
※Z-method is commonly used when the pipe diameter is above 200mm.
※W-method is usually used on plastic pipes with a diameter from 15mm to 50mm
7.Site work map：
7.FAQ:
1. Q: How to install the handheld water flow meter model?
A: This installation is very simple, and we provide manuals and installation videos for water flow meter types, please feel free to contact us.
2. Q: How long is the continuous use time of the battery after charging is completed?
Answer: The continuous working time of the battery is estimated to be more than 12 hours.
3. Q: Can I get samples? How many PCS is the MOQ?
A: Yes, our MOQ is 1PCS.
4. Q: How long is the shortest delivery time you can offer?
A: We have stock, if you need, we can ship to you immediately after we receive your payment.
5. Q: Can I visit your factory?
A: Of course, we are always welcome to visit our factory if you need.
6.Q: How about the accuracy of the portable ultrasonic flowmeter?
A: The precision is 1%.
