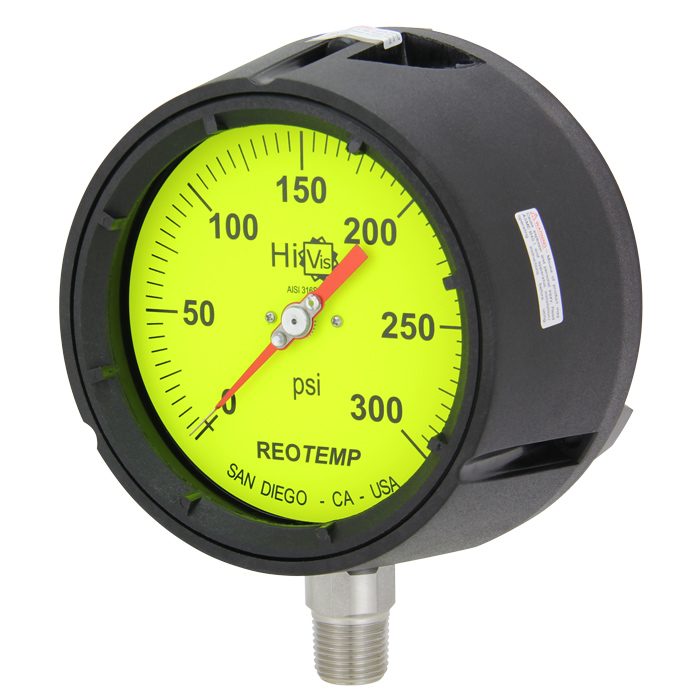

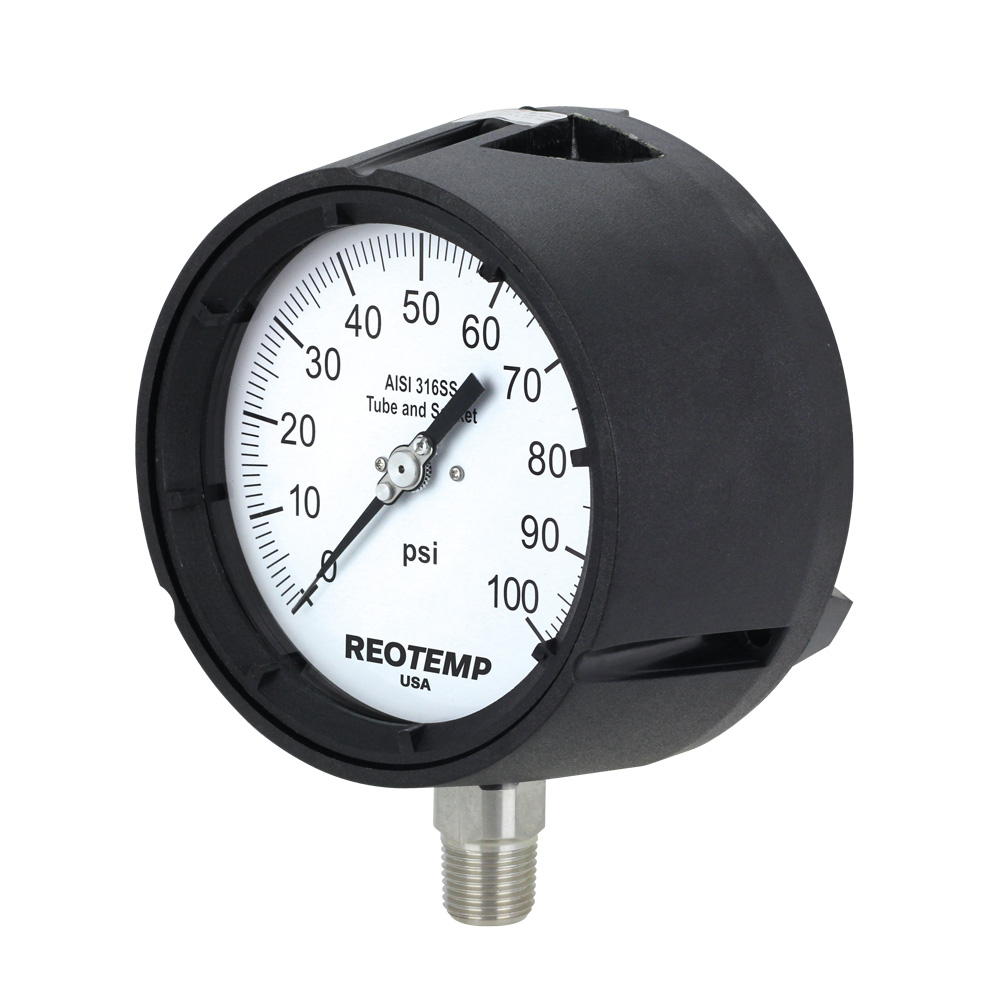

4.5” INDUSTRIAL PROCESS GAUGE



REOTEMP’s Series PT45P process gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries. The solid front and blowout back provides a high degree of user safety. Note: For highly-corrosive, high-temperature, or severe service applications a diaphragm seal is recommended.

  • Safety Pattern Design
  • Solid Front/Blowout Back Safety Case
  • All Stainless Steel Internal Parts
  • Internal Overload and Underload Stops
  • Field Fillable Case
  • Micro-Adjustable Pointer with Floating Zero
  • ASME B40.100 Design
  • NACE MR-0175 and MR-0103 Compliant

Specification

Accuracy ±0.5%, Grade 2A (10k – 20k psi = 1% upscale, 2% downscale)
Ambient Limits -40°F/150°F
Process Limits -40°F/250°F
Process Limits with Diaphragm Seal -60°F/400°F (Direct Mount)*
-110°F/750°F (Remote Mount or Cooling Tower)*
*Exact limits depend on diaphragm seal and fill fluids.
Wetted Materials Tube: 316SS Seamless
Socket: 316SS
Lens Tempered Safety Glass (Standard),
Plastic or Laminated Safety Glass
Other Materials Case: Reinforced Thermoplastic (Phenolic) or 316SS
Ring: Phenolic Turret Twist-Off or SS Twist-Off Bayonet
Dial: White Aluminum, Black Letters, Case-to-Socket: O-Ring
Fillable Yes
Restrictor Screw Yes, removable.
Maximum Working Pressure Stable = 100%
Momentary = 130% of scale
Environmental Protection NEMA 4X/IP65
Weight Phenolic (Dry) = 2.5 lbs
Phenolic (Filled) = 3.5 lbs
SS (Dry) = 2 lbs
SS (Filled) = 3 lbs
