INDUSTRIAL STAINLESS STEEL GAUGE

INDUSTRIAL STAINLESS STEEL GAUGE

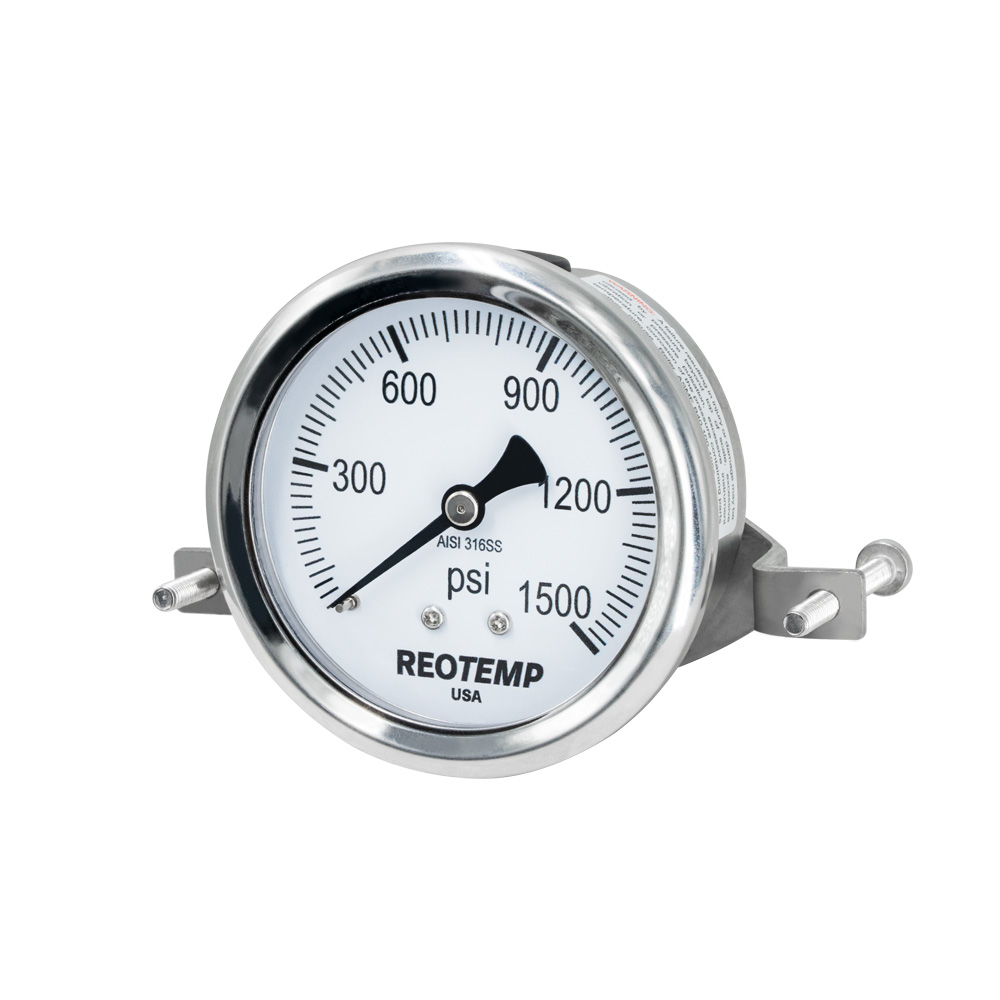

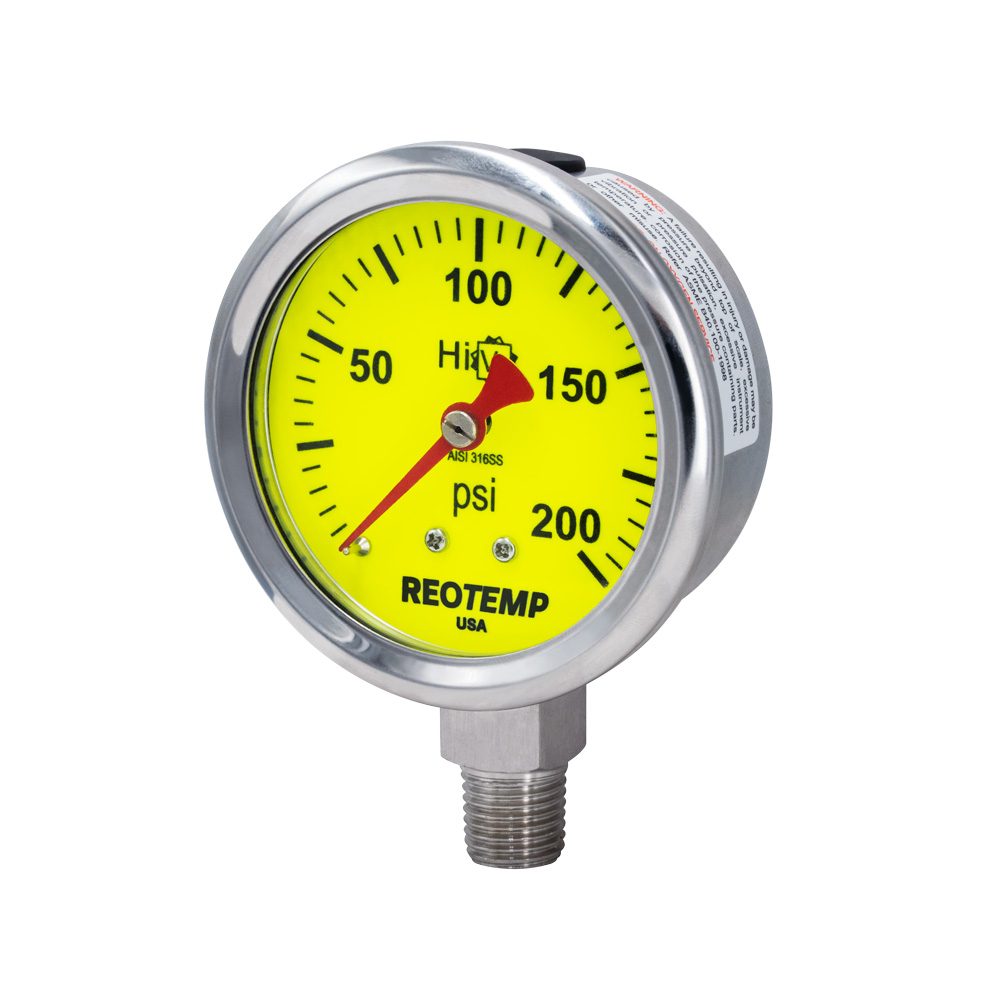

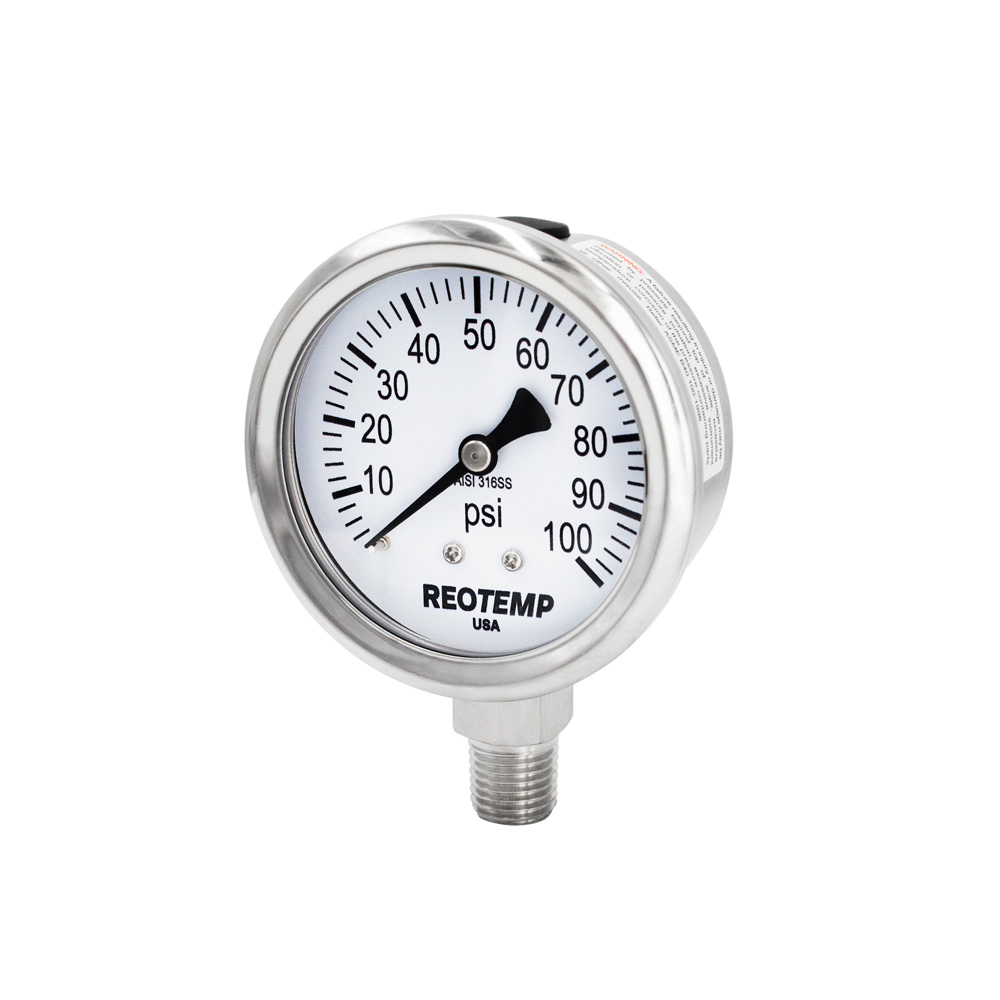

Reotemp’s Series PM25 features a stainless steel case, tube and socket, making the gauges resistant to corrosion from both environment and media. Liquid filling is recommended for severe service. The economical and attractive crimp ring design, along with a variety of convenient panel mounting adapters, make this popular gauge the right choice for many applications.

  • All-Welded Stainless Steel Construction
  • Field Fillable Case, Nema 4X/IP65
  • Economical Crimped Gauge with Heavy Duty Case Design
  • Ideal for Both Indoor and Outdoor Applications

Specification

Accuracy ±1.6% ASME Grade B+, EN 837-1
Ambient Limits -40°F/150°F
Process Limits -40°F/250°F
Process Limits with
Diaphragm Seal
Available with diaphragm seal, call to
inquire.
Wetted Materials Tube: 316SS
Socket: 316SS
Lens Polycarbonate (Standard), Tempered
Glass, Laminated Safety Glass
Other Materials Case: 304SS
Ring: 304SS
Dial: White Aluminum, Black Letters
Case-to-Socket: Laser Welded
Fillable Yes
Maximum Working
Pressure
Stable = 100%
Momentary = 130% of scale
Environmental
Protection
NEMA 4X/IP65
Weight 2.5” = 0.35 lbs (0.5 lbs filled)
