INDUSTRIAL STAINLESS STEEL GAUGE (PM40)

INDUSTRIAL STAINLESS STEEL GAUGE (PM40)

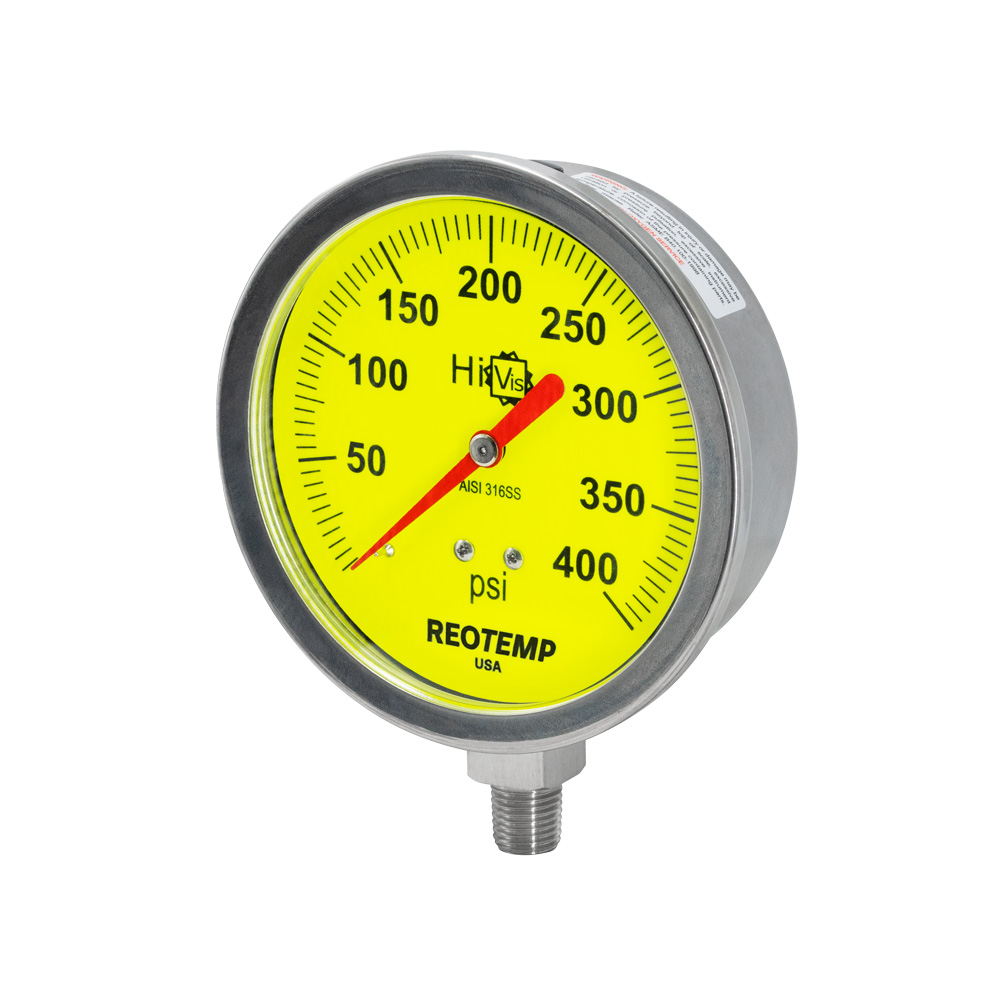

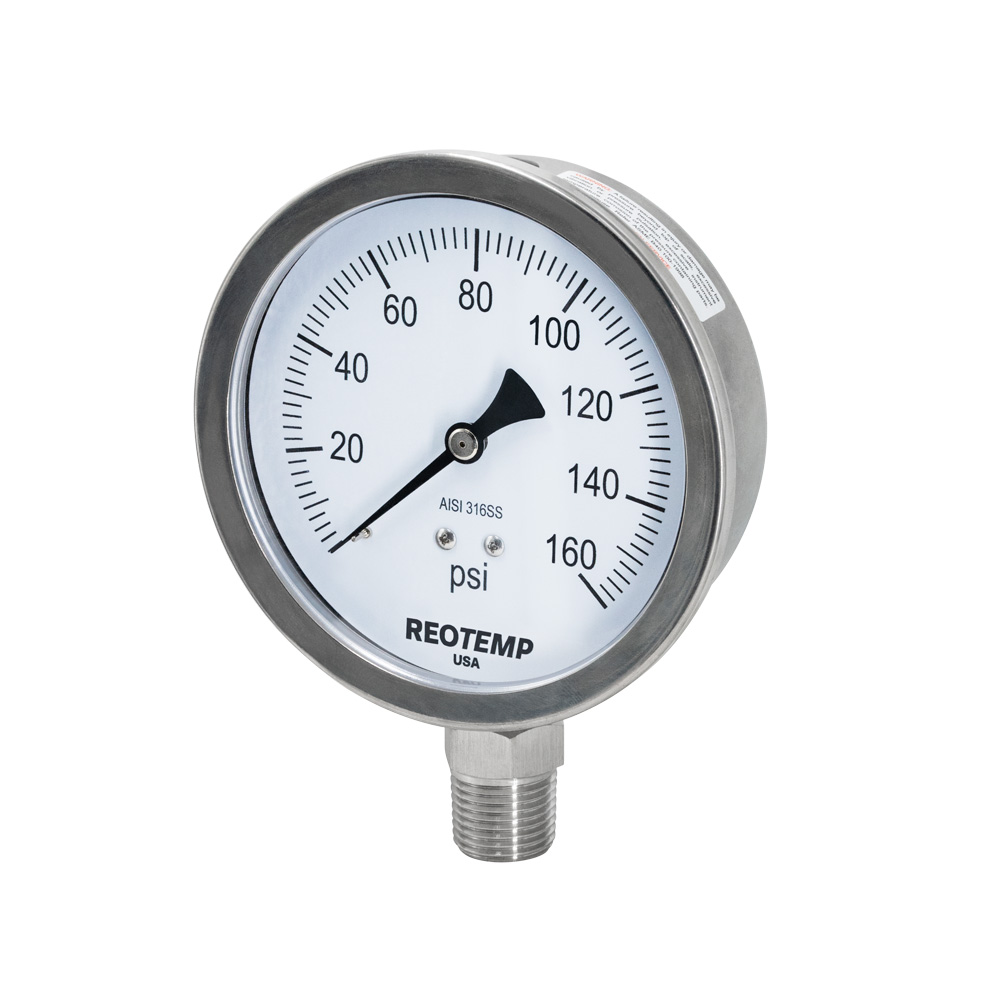

REOTEMP’s Series PM40  features a stainless steel case, tube and socket, making the gauges resistant to corrosion from both environment and media. Liquid filling is recommended for severe service. The economical and attractive crimp ring design, along with a variety of convenient panel mounting adapters, make this popular gauge the right choice for many applications.

  • Economical Gauge with Stainless Steel Case and Internals
  • Case is Easy to Fill in the Field
  • Ideal for Both Indoor and Outdoor Applications
  • ASME B40.100 Design

Specification

Construction Materials

Non Wetted
Case: 304SS
Ring: 304SS
Dial: White Aluminum, Black Letters

Wetted
Tube: 316SS
Socket: 316SS

Case-to-Socket
Screw Connection

Lens
Plastic

Temperature Limits

Ambient
-40°F to 140°F
Process
-40°F to 150°F
Process When Assembled with a Diaphragm Seal
Not Recommended for Diaphragm Seal Mounting. See PR Model Gauges for Diaphragm Seal Mounting.

Accuracy: 2 – 1.6 – 2%, ASME Grade B+

Fillable: Yes

Restrictor Screw: Built-in, Non-removable

Max Working Pressure: Stable = 100%, Momentary = 110% of scale

Weight: 4” = 0.8 lbs (1.4 lbs filled)
