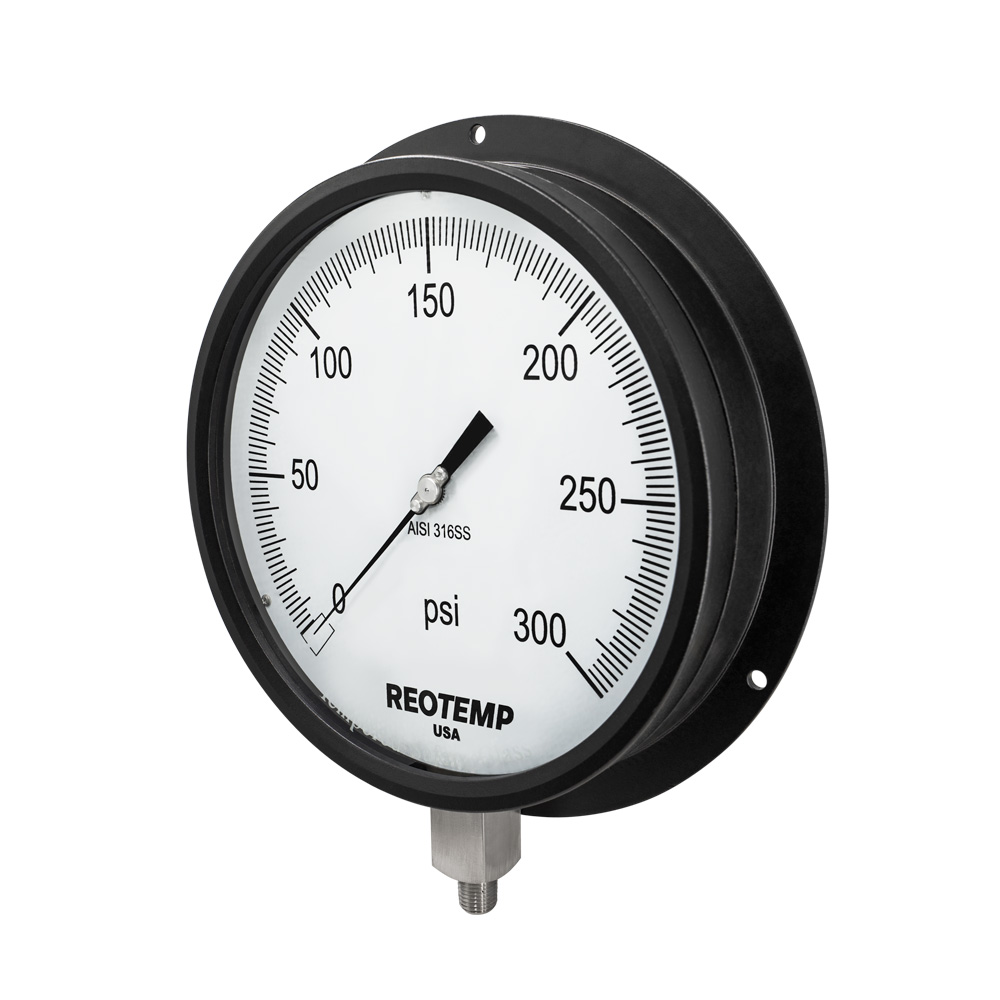

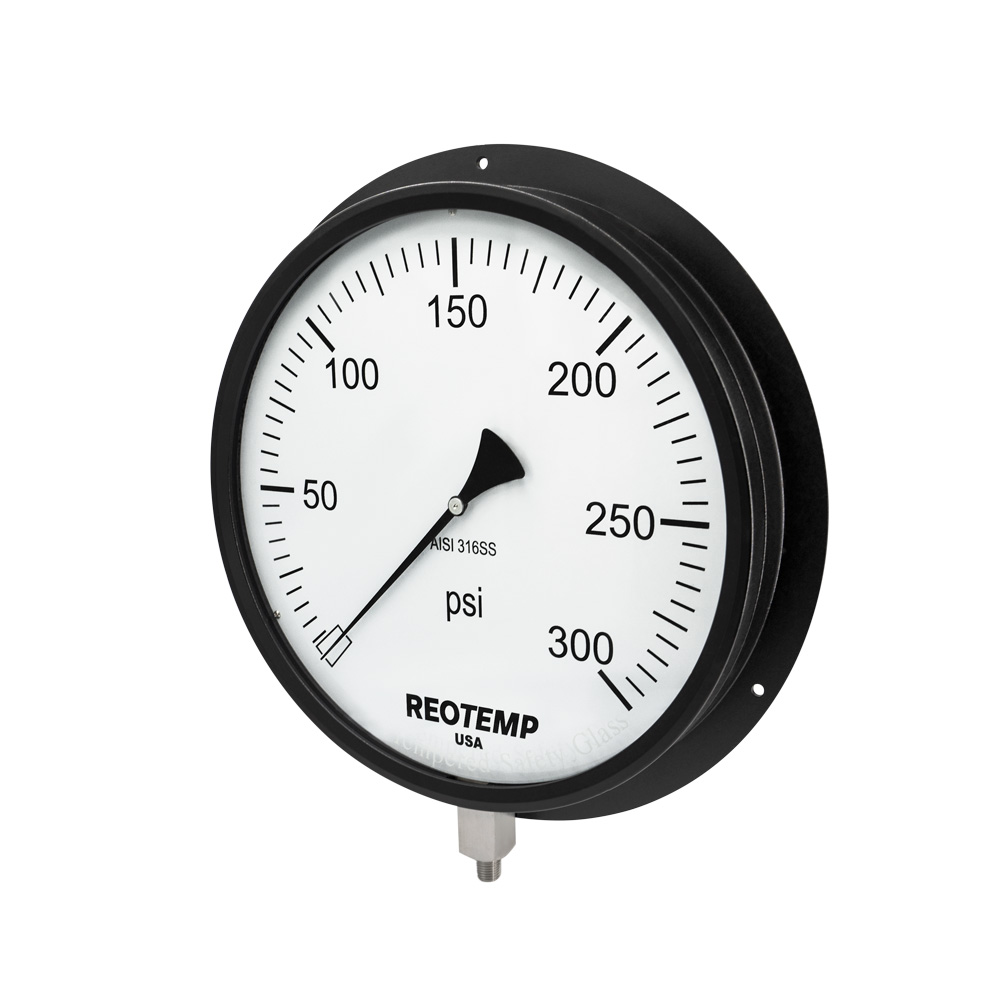

Large Dial Industrial Gauge
Specification
| Accuracy | 1%, Grade 1A |
| Ambient Limits | -40°F/150°F |
| Process Limits | 316SS: -40°F/200°F |
| Wetted Materials | Tube: 316SS Socket: 316SS |
| Lens | Tempered Safety Glass (Standard) |
| Other Materials | Case: Reinforced Thermoplastic (Phenolic) or 316SS Ring: Phenolic Turret Twist-Off or SS Twist-Off Bayonet Dial: White Aluminum, Black Letters, Case-to-Socket: O-Ring |
| Fillable | Yes |
| Restrictor Screw | Yes, removable. |
| Maximum Working Pressure | Stable = 100% Momentary = 130% of scale |
| Weight | 8″ = 3.8lbs , 10″ = 5.7lbs , 12″ = 6.7lbs |
| Weatherproof | Nema 3/3x(IP54) Enclosure |
