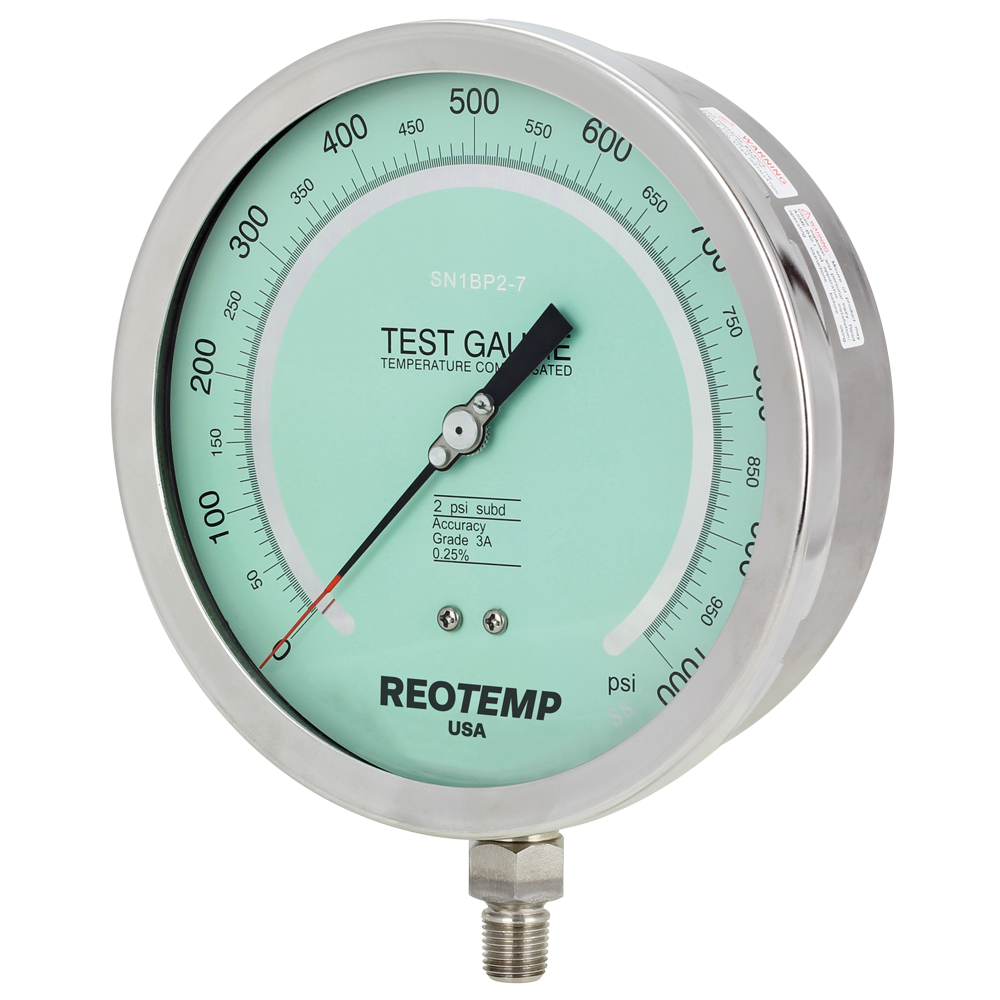

Mechanical Dial Test Gauge

Mechanical Dial Test Gauge

REOTEMP’s Series PL test gauge is designed for use in laboratories, testing or calibration facilities, or wherever accuracy and repeatability are of prime importance. Rugged, all-welded stainless steel construction makes this gauge suitable for almost any test application. Reading error due to parallax is eliminated by use of a knife-edge pointer and mirror dial.

  • Stainless Steel Case & Bayonet Ring
  • Anti-Parallax, Mirror Dial
  • 10 Point NIST Traceable Calibration Certificate Included
  • ASME B40.100 Design
  •

Specification

  • Construction Materials

    Non Wetted
    Case: 304SS
    Ring: 304SS, Twist-Off Bayonet
    Dial: Aluminum, Mirror Band

    Wetted
    Tube: 316SS
    Socket: 316SS

    Case-to-Socket
    Screw Connection

    Lens
    Tempered Safety Glass (Standard), Plastic, or Laminated Safety Glass

    Temperature Limits

    Ambient
    -40°F to 150°F

    Process
    -40°F to 150°F

    Process When Assembled with a Diaphragm Seal
    Cannot be mounted to a diaphragm seal.

    Accuracy: 0.25%, Grade 3A

    Fillable: No

    Restrictor Screw: Yes, Removable

    Weight: 2.2 lbs

    Max Working Pressure: Stable = 100%, Momentary = 110%
