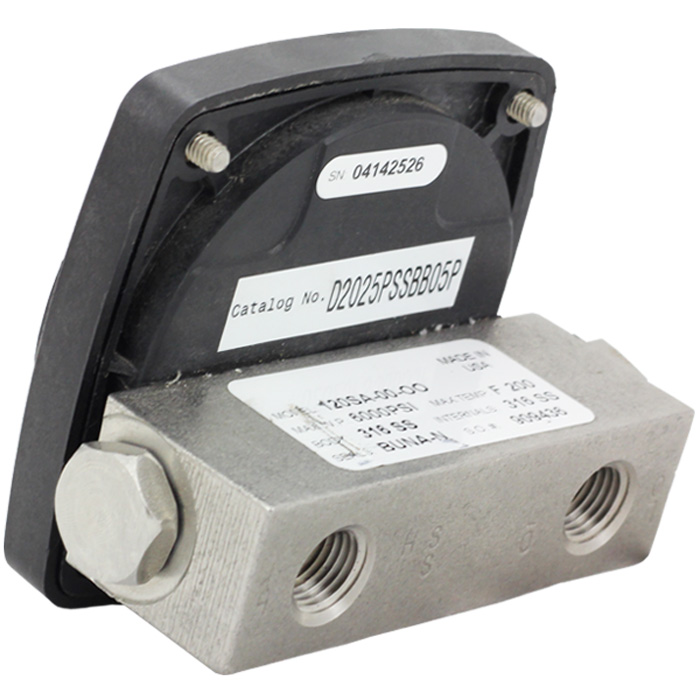

Piston Type Differential Gauge

REOTEMP’s Series D20 Piston Type Mechanical Differential Pressure Gauges are primarily designed for liquid applications. Differential pressure is sensed by the movement of a precisely ground floating piston/magnet in a precision bore against a calibrated spring. A rotary pointer magnet located close to the internal magnet follows the movement of the piston magnet and indicates differential pressure on the dial. Piston type differential pressure gauges exhibit a slight amount of bypass as the fluid crosses from the high to the low pressure port.

• Rugged, Compact, Cost Effective Design
• Weatherproof Rated to NEMA 4X/IP65
• Working Pressure Up to 6,000 psi
• Over-range Protection to Max Working Pressure
• Popular for Filters and Strainers
• +/- 2% Full Scale Accuracy
