Portable Flow Meter
Portable Flow Meter
2. Repeatability: better than 0.2%
3. Power supply: battery, AC85-265V
4. Medium temperature: -30°C-160°C 5. Display: LCD backlight display
1.Portable ultrasonic flowmeters are divided into:
⑴.Handheld: Model TUF2000H
⑵.Portable: the model is TUF2000P
2.Applications:

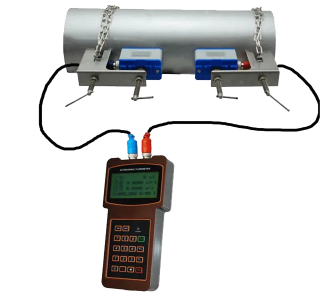

Portable flow meter is a device used to measure the velocity of fluids in closed pipes. It consists of a portable main unit and a pair of ultrasonic sensors that clip on the outside of the pipe.
The applications for this type of instrumentation are diverse and are used in everything from water treatment, chemical processing, petroleum and pharmaceutical production, and HVAC systems. It is an ideal flow measurement tool for temporary flow measurement, pipeline flow balance, and troubleshooting.
This device is an indispensable tool for fluid flow measurement, offering accuracy, portability, and ease of use in a variety of applications.
3.A portable flow meter is a device designed to measure the flow of liquid through a pipe. It offers several advantages over traditional flow meters, including:
⑴. No need to cut or weld pipes, easy to install and use.
⑵.Non-invasive, since it does not come into contact with the fluid being measured, minimizing the risk of contamination.
⑶. High precision, with the ability to measure low flow.
⑷. Versatile and adaptable as it can be used in various pipe sizes, materials and fluid types.
⑸.It is easy to carry, very suitable for temporary installation or occasions where the flowmeter needs to be moved frequently.
All these advantages make it an attractive choice for industries requiring accurate and reliable flow measurement, such as oil and gas, chemical and food processing.
4.Applicable pipe diameter range table for paired external clamp sensors:
Clamp-on Type | Picture | Model | Accuracy | Protection Class | Measuring Pipe Size | Medium Temperature |
Standrad |  | TS-2 | ±1% | IP68 | DN25-DN100mm | -30℃-90℃ |
 | TM-1 | ±1% | IP68 | DN50-DN700mm | -30℃-90℃ | |
 | TL-1 | ±1% | IP68 | DN300-DN3000mm | -30℃-90℃ | |
High Temperature Standard |  | TS-2-HT | ±1% | IP68 | DN25-DN100mm | -30℃-160℃ |
 | TM-1-HT | ±1% | IP68 | DN50-DN700mm | -30℃-160℃ | |
 | TL-1-HT | ±1% | IP68 | DN300-DN3000mm | -30℃-160℃ | |
Mounting Bracket |  | HS | ±1% | IP68 | DN25-DN100mm | -30℃-90℃ |
 | HM | ±1% | IP68 | DN50-DN700mm | -30℃-90℃ | |
 | EB-1 | ±1% | IP68 | DN300-DN3000mm | -30℃-90℃ | |
High Temperature Mounting Bracket |  | HS-HT | ±1% | IP68 | DN25-DN100mm | -30℃-160℃ |
 | HM-HT | ±1% | IP68 | DN50-DN700mm | -30℃-160℃ | |
 | EB-1-HT | ±1% | IP68 | DN300-DN3000mm | -30℃-160℃ |
5.Factory production picture:
FAQ:
1. Question: Are you a manufacturer of ultrasonic flowmeters?
A: Yes, we are China’s top ten flowmeter manufacturers.
2. Q: How about your price? The quality of how? ?
A: Our products are very cost-effective. I have sales in both the Chinese market and the international market. I can provide OEM, ODM, and the sales volume is very large. Our raw materials are purchased in large quantities in cash, which is also large. Reduced our raw material cost, so our price is also favorable,
3. Q: Can I get samples?
A: Yes, we have a large number of stock materials and can help you get the samples as soon as possible.
4. Q: Can you provide the shortest delivery time?
A: For regular flow meters, after we receive the payment, we can arrange the shipment at the first time.
5.Q: If how to pay?
A: We can support: credit card payment, TT payment, Western Union payment, LC payment.
