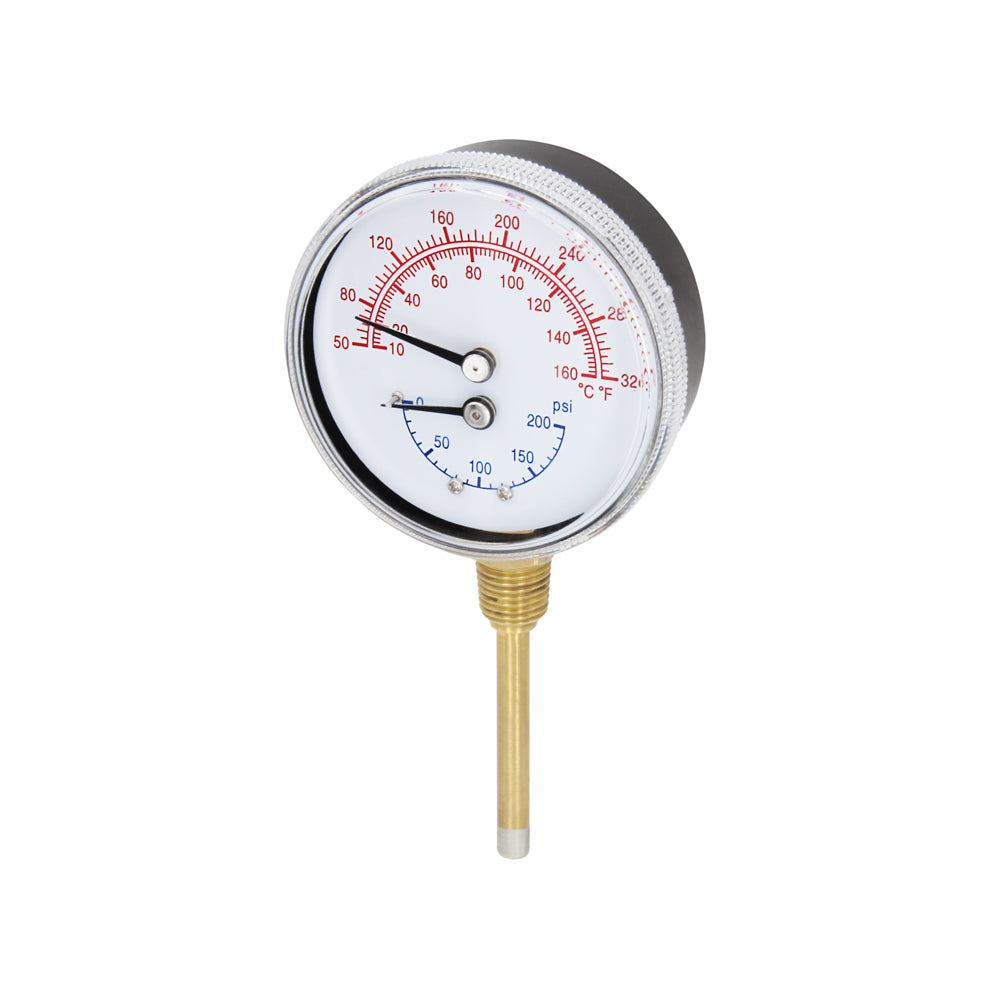

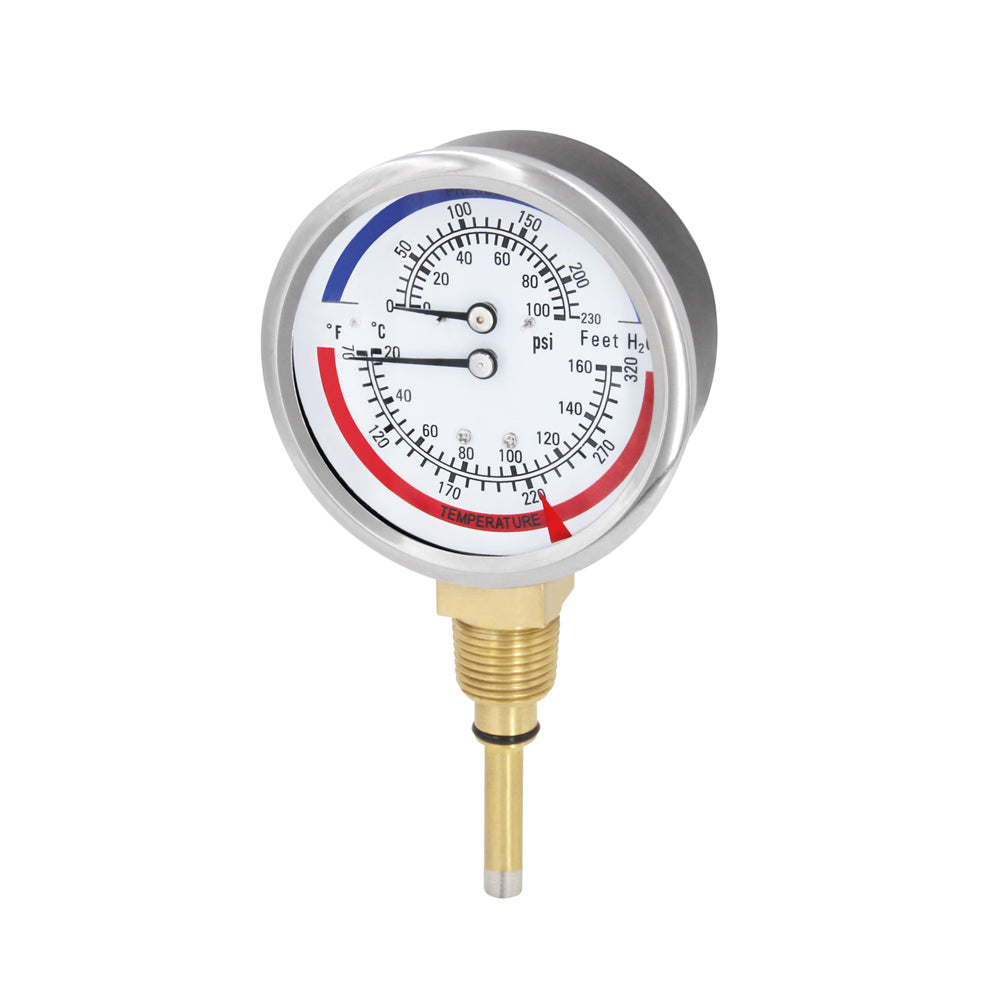

Reotemp’s Tridicator combines a temperature measurement instrument and a pressure gauge in one convenient instrument.
The tridicators are:
- Designed for use with boilers,
- Dual scale which displays pressure in psi and feet of H₂O
- the temperature in C° and ° F (Temp Range: 70-320 F&C)
- For use with Steam and Water
GENERAL SPECIFICATIONS
Standard Size: 2.5”, 3”
Case: Black Steel or 304 Stainless Steel
Bezel: 304 Stainless Steel
Window: Glass
Dial: White
Pointer: aluminum, black
Stem: Brass
Connection: bottom, back
Thread: 1/4”, 1/2”
Temperature Element: bimetal coil
Pressure Element: Bourdon Tube
Temperature Accuracy: 2%
Pressure Accuracy: 3-2-3%
Warranty: 1 Year
